Automatic carton erectors
A carton erector takes a flat corrugated case from the magazine, opens it, folds the bottom flaps and seals them with tape or hot-melt glue, ready for packing. The range goes from a semi-automatic stand that helps one operator to servo-driven erectors that form up to 50 boxes per minute. They are built by our manufacturing partners and sold, shipped and supported by Lion Packing Systems.
Which carton erector fits your line?
Semi-automatic carton erectors

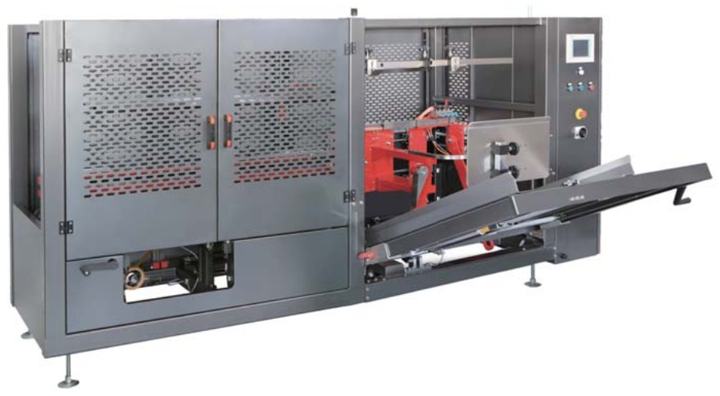

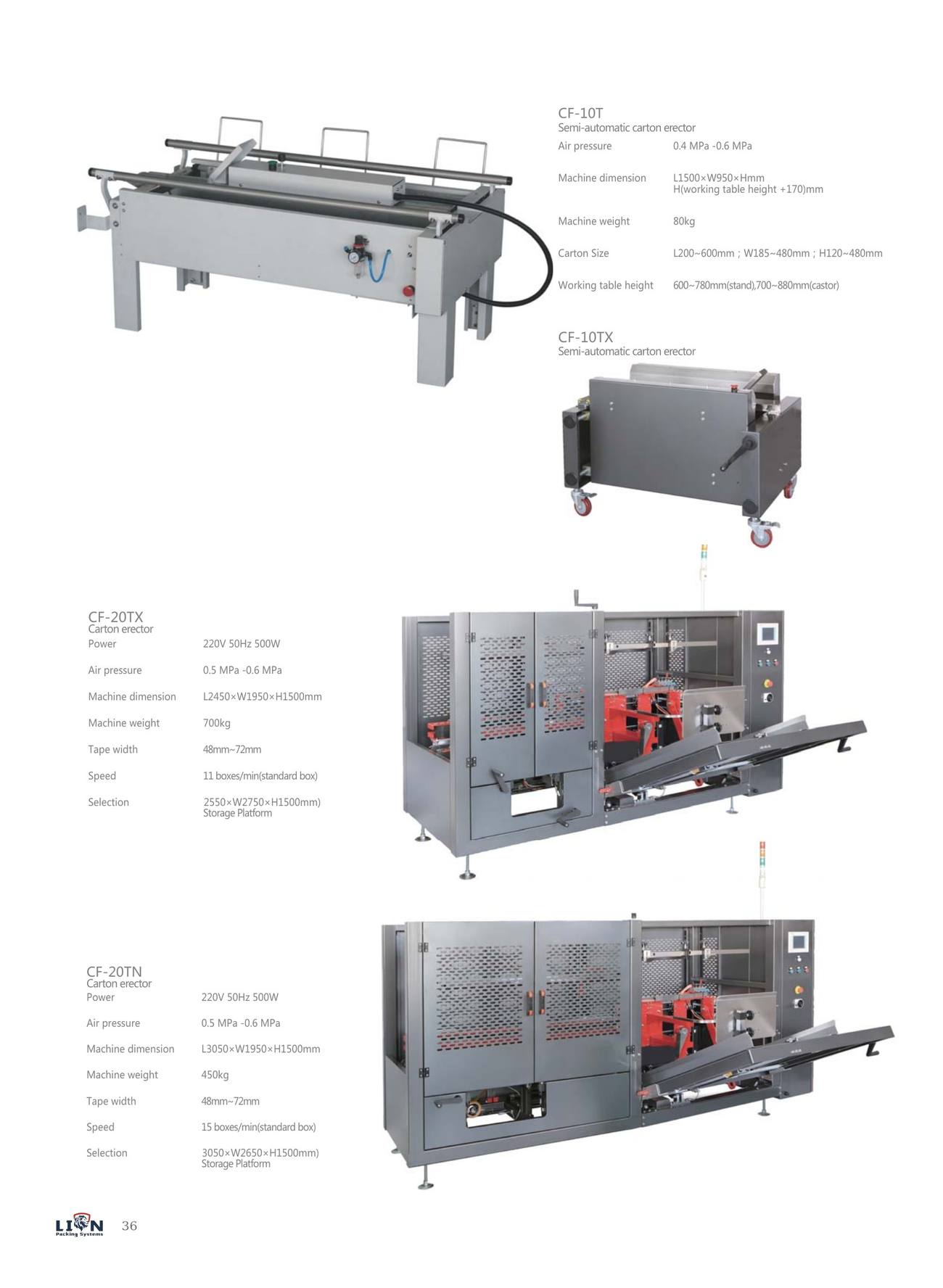

The CF-10T is a pneumatic stand that helps the operator form cases from 200 × 185 × 120 mm up to 600 × 480 × 480 mm, with a working height of 600–880 mm. The CF-20TX and CF-20TN erect and tape cases automatically at 11 and 15 boxes per minute with 48–72 mm tape, and can be fitted with a storage platform. Specifications for the CF-10TX are available on request.
| Model | Sealing | Speed (boxes/min) | Machine size (mm) | Weight (kg) | Power |
|---|---|---|---|---|---|
| CF-10T | Operator-paced, cases 200–600 × 185–480 × 120–480 mm | — | 1500 × 950 | 80 | Air only, 0.4–0.6 MPa |
| CF-20TX | Tape, 48–72 mm | 11 | 2450 × 1950 × 1500 | 700 | 220 V / 50 Hz, 0.5 kW |
| CF-20TN | Tape, 48–72 mm | 15 | 3050 × 1950 × 1500 | 450 | 220 V / 50 Hz, 0.5 kW |
Carton erectors · tape or hot melt

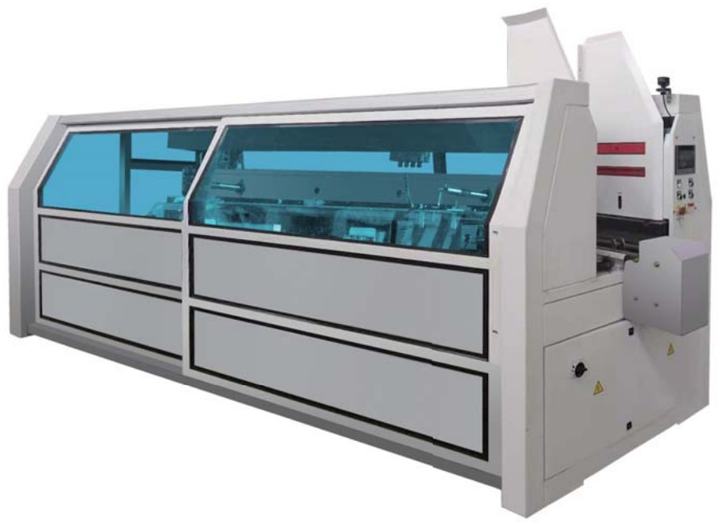

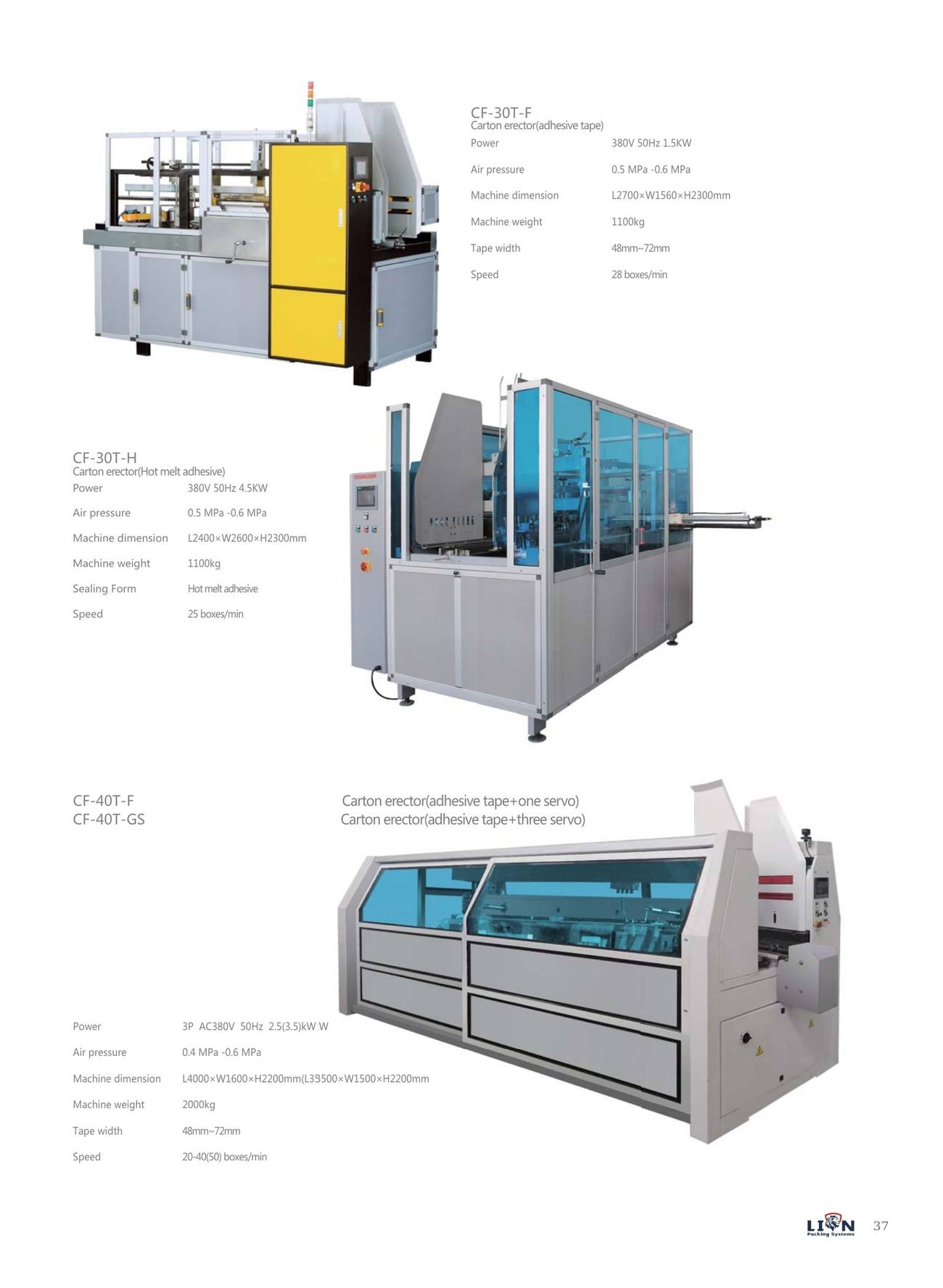

The CF-30T-F seals the bottom with tape at 28 boxes per minute and the CF-30T-H with hot-melt glue at 25. The CF-40T-F and CF-40T-GS add one or three servo motors for 20–40 boxes per minute, or up to 50 depending on the case. All need air at 0.4–0.6 MPa.
| Model | Sealing | Speed (boxes/min) | Machine size (mm) | Weight (kg) | Power |
|---|---|---|---|---|---|
| CF-30T-F | Tape | 28 | 2700 × 1560 × 2300 | 1100 | 380 V / 50 Hz, 1.5 kW |
| CF-30T-H | Hot melt | 25 | 2400 × 2600 × 2300 | 1100 | 380 V / 50 Hz, 4.5 kW |
| CF-40T-F | Tape, one servo | 20–40 (up to 50) | 4000 × 1600 × 2200 | 2000 | 380 V / 50 Hz, 2.5 kW |
| CF-40T-GS | Tape, three servos | 20–40 (up to 50) | 3500 × 1500 × 2200 | 2000 | 380 V / 50 Hz, 3.5 kW |
Servo carton erectors

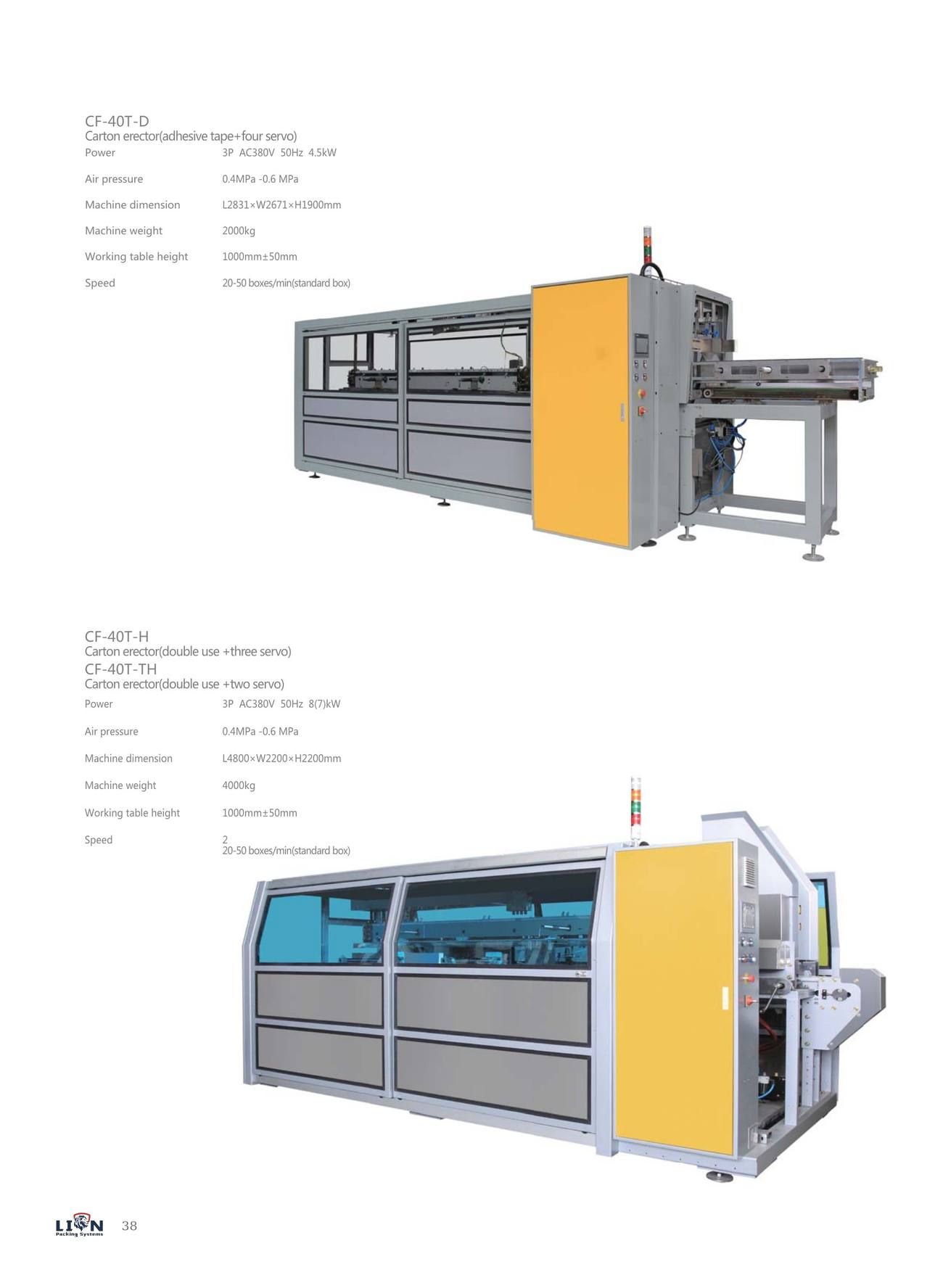

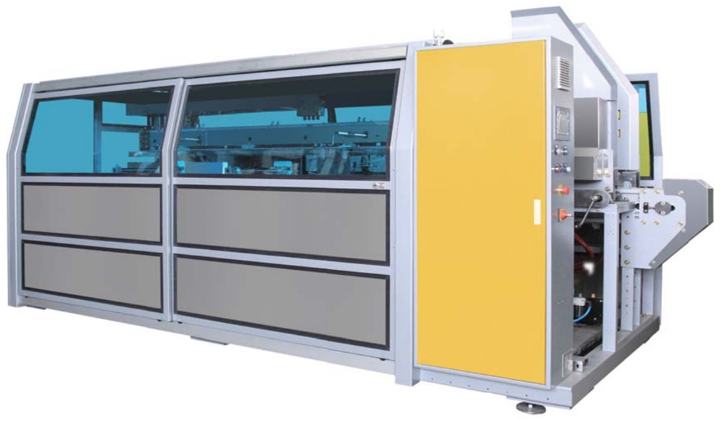

The CF-40T-D erects and tapes cases with four servo motors. The CF-40T-H and CF-40T-TH are dual-use machines with three and two servos. All form 20–50 standard boxes per minute at a 1,000 mm working height and need air at 0.4–0.6 MPa.
| Model | Sealing | Speed (boxes/min) | Machine size (mm) | Weight (kg) | Power |
|---|---|---|---|---|---|
| CF-40T-D | Tape, four servos | 20–50 | 2831 × 2671 × 1900 | 2000 | 380 V / 50 Hz, 4.5 kW |
| CF-40T-H | Dual-use, three servos | 20–50 | 4800 × 2200 × 2200 | 4000 | 380 V / 50 Hz, 8 kW |
| CF-40T-TH | Dual-use, two servos | 20–50 | 4800 × 2200 × 2200 | 4000 | 380 V / 50 Hz, 7 kW |
Figures from the manufacturer's catalogue. Other voltages and custom sizes are available on request.
Carton erecting: common questions
What does a carton erector do?
It takes flat corrugated cases from a magazine, opens them into shape, folds the bottom flaps and seals them with tape or hot-melt glue. The open case then goes to manual packing or to a case packer, and a carton sealer closes the top.
Tape or hot melt for the bottom seal?
Tape is simple, needs no glue system and suits most cases. Hot-melt glue gives a cleaner look and a strong bond on heavy cases. The CF-30T-H seals with hot melt; the other automatic models use tape.
How fast are the erectors?
Automatic models form 11 to 50 boxes per minute: the CF-20 models 11–15, the CF-30T models 25–28 and the servo CF-40T models 20–50, depending on case size.
How does Lion support machines built by partner factories?
Lion Packing Systems is the sales agent for these machines. We check the model against your product, pack and speed, manage the order and shipping, and provide installation guidance, training and spare parts in Spanish and English.
